Products

Our Product Line

Drill-Powered Pulleys

From light-duty arborist work to fire rescue operations — find the right AWAH pulley for your vertical access needs.

AWAH Z2-A

Z2 series multi-function pulley for arborist work. 200 kg load, 2.03 kg. Swivel-equipped. XF 494-2023 standard. Friction hook descent.

200 kg2.03 kgEN 1891 10.5–11 mm

Fire Rescue

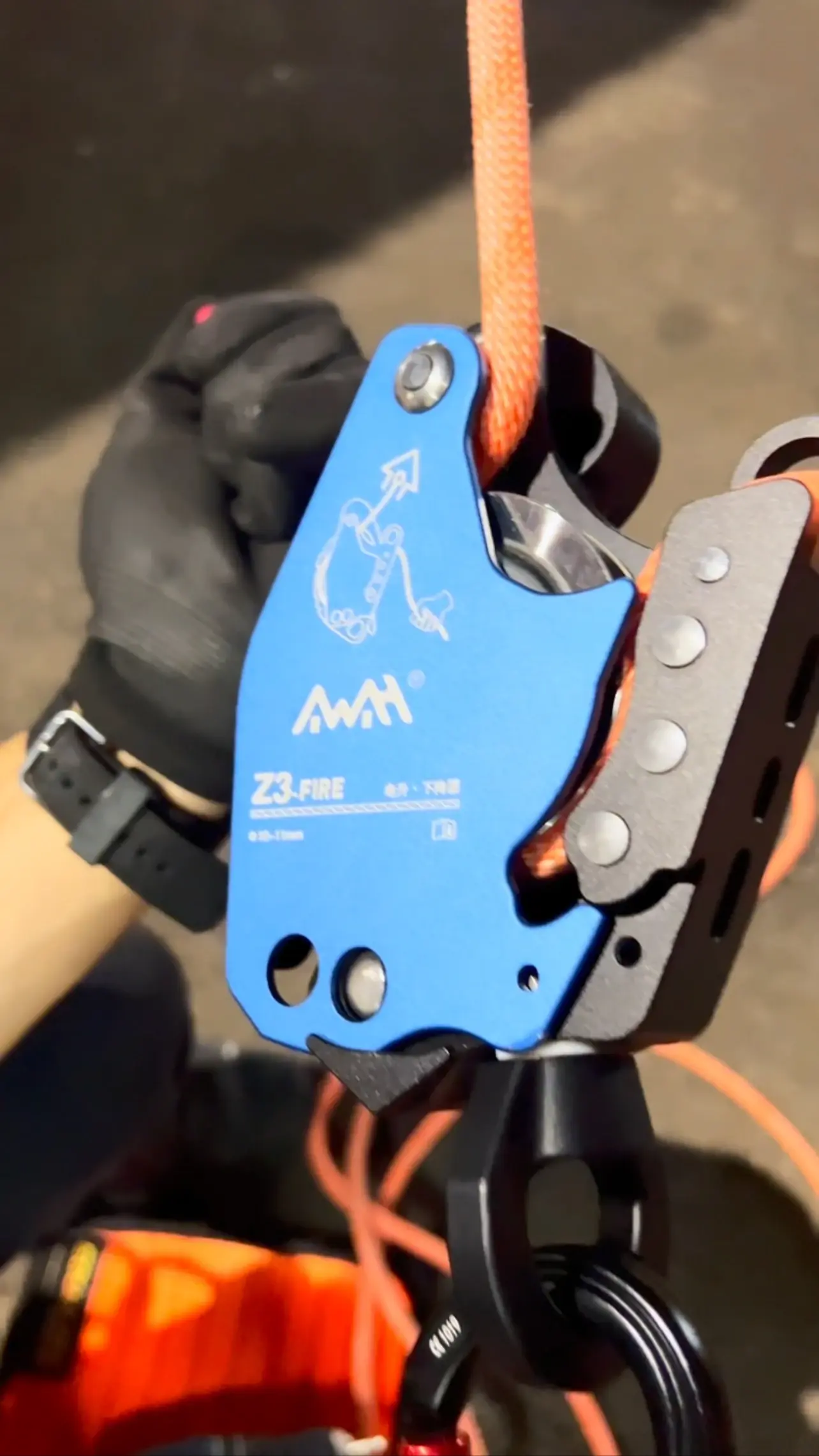

AWAH Z3-FIRE

High-capacity fire rescue ascender and manual descender rated to 285 kg. Swivel-equipped. IP66 gearbox with crash self-locking. XF 494-2023 standard.

30–285 kg2.33 kgEN 1891 10–11 mm

Light Duty

AWAH Z3-MINI

Compact drill-powered ascender and manual descender. 5–100 kg load, 1.83 kg. IP66 gearbox with crash self-locking. Swivel-equipped. For rope access and arborist work.

5–100 kg1.83 kgEN 1891 9–13 mm

Professional

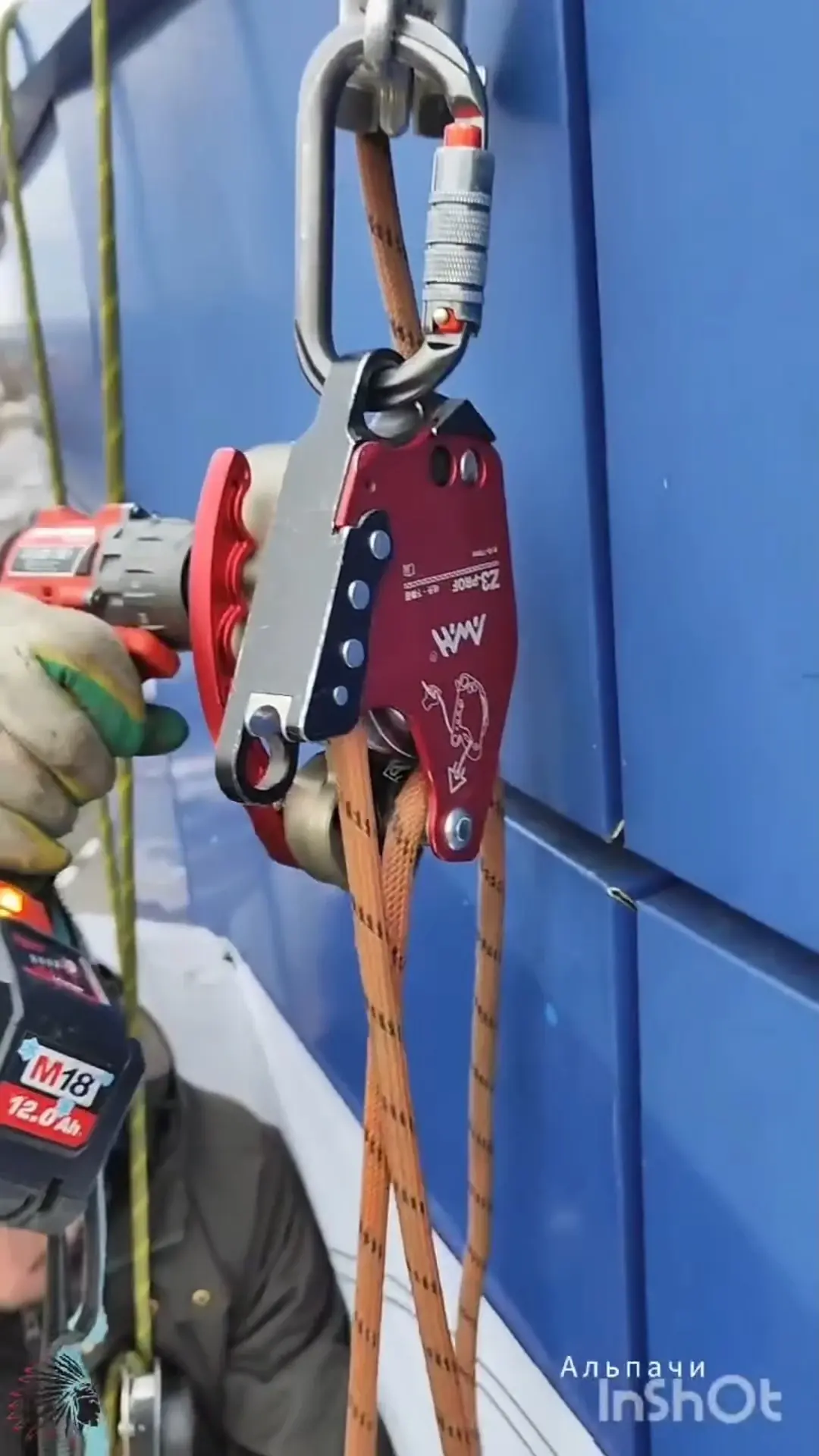

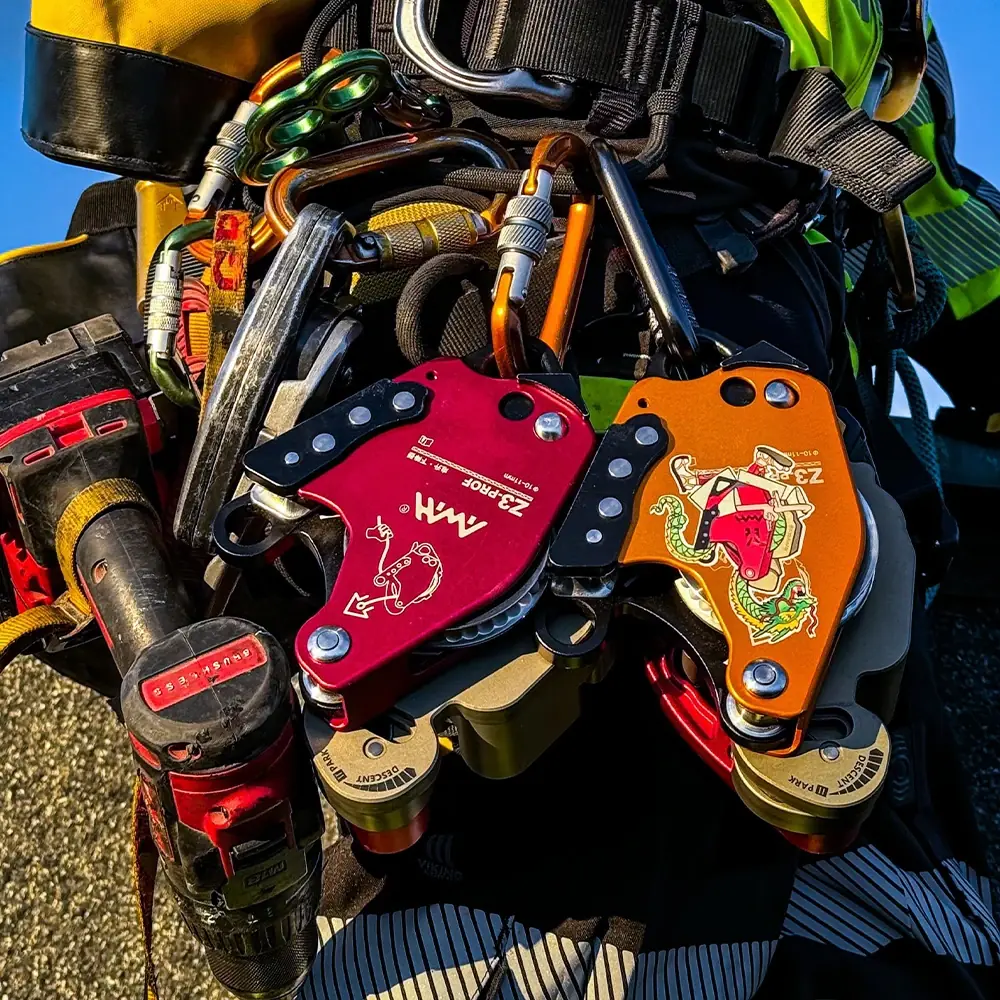

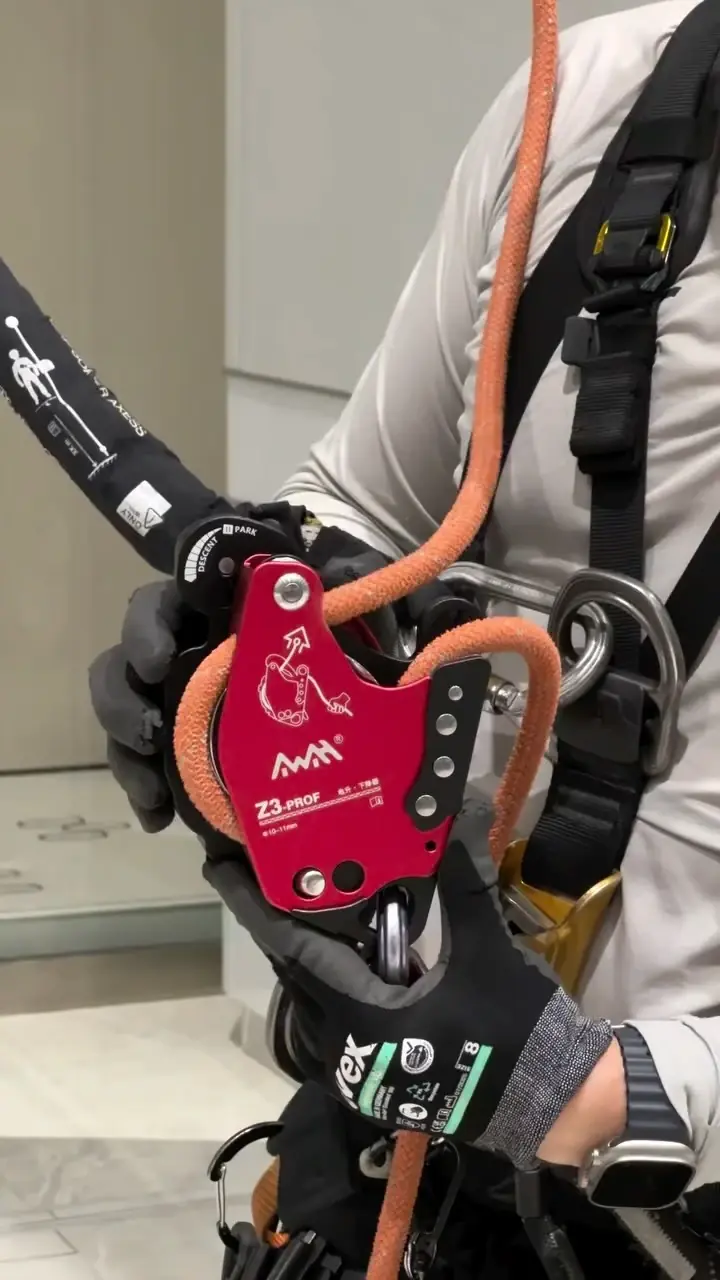

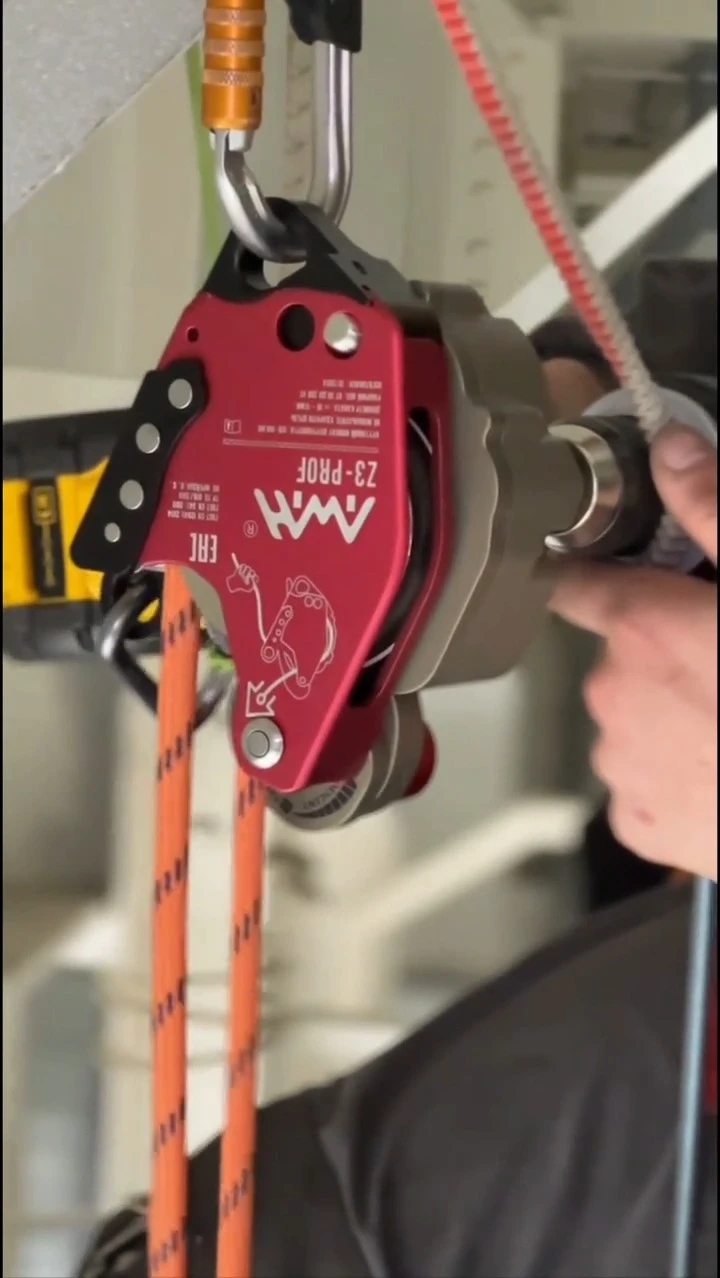

AWAH Z3-PROF

Professional-grade drill-powered ascender and manual descender. 30–200 kg load, 2.27 kg. Friction block with 3 guide wheels. IP66 gearbox with crash self-locking. XF 494-2023.

30–200 kg2.27 kgEN 1891 10–11 mm

Heavy Lift

AWAH Z3-TANK

Heavy-duty drill-powered ascender and manual descender. 30–300 kg load, 2.23 kg. Friction block with 3 guide wheels. IP66 gearbox with crash self-locking. XF 494-2023. Highest capacity in the Z3 series.

30–300 kg2.23 kgEN 1891 11–13 mm

H Series

AWAH H1

Rope-retrieving pulley. Single sheave + single retriever. 445 g, 25 kN MBS, WLL 250 kg per strand / 500 kg. Cordless-drill powered. XF 494-2023.

445 g25 kNø8–13 mm

Compare Models

Product Comparison

Specification	Z2-A	Z3-FIRE	Z3-MINI	Z3-PROF	Z3-TANK
Category	Arborist	Fire Rescue	Light Duty	Professional	Heavy Lift
Ascender / Descender / Pulley	Ascender / Descender / Pulley	Ascender / Descender / Pulley	Ascender / Descender / Pulley	Ascender / Descender / Pulley	Ascender / Descender / Pulley
Load Limit	200 kg	30–285 kg	5–100 kg	30–200 kg	30–300 kg
Weight	2.03 kg	2.33 kg	1.83 kg	2.27 kg	2.23 kg
Rope	EN 1891 10.5–11 mm	EN 1891 10–11 mm	EN 1891 9–13 mm	EN 1891 10–11 mm	EN 1891 11–13 mm
Drill Torque	50–150 Nm	120–180 Nm	90–180 Nm	120–180 Nm	120–180 Nm
Swivel	Yes (Rotary Joint)	Yes (Rotary Joint)	Yes (Rotary Joint)	No	Yes (Rotary Joint)
Gearbox IP Rating	No — backup safety system required	IP66	IP66	IP66	IP66
Standard	XF 494-2023	XF 494-2023	XF 494-2023	XF 494-2023	XF 494-2023
Service Life	6 years	6 years	6 years	6 years	6 years

Gallery

Product Images

Next Steps

Ready to Get Started?

Download Spec Sheet

Get detailed technical specifications, dimensional drawings, and performance data for all Z2 and Z3 models.

Request via Contact

Book Factory Tour

Schedule a live video walkthrough of our manufacturing facility in Dongguan. See our production line and QC process.

Book a Video Call

Get Custom Quote

Tell us your load requirements, rope diameter, and use case. Our engineers will recommend the right configuration.

Request Quote

FAQ

Product Questions

What makes AWAH devices different from traditional pulleys?

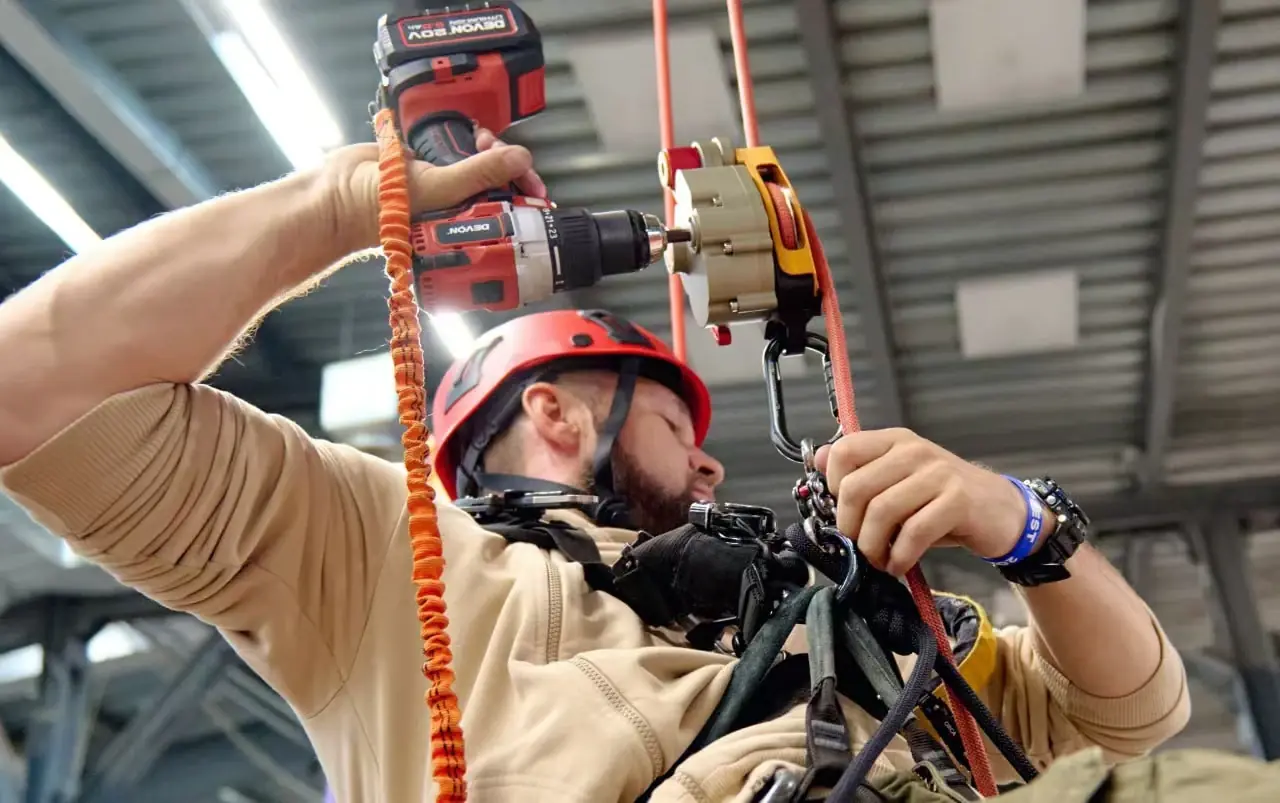

AWAH devices are 3-in-1 tools: pulley, ascender, and descender. They're the world's first drill-powered vertical access system — pair with a standard brushless hand drill for powered lifting. The Z3 series features a built-in gearbox crash self-locking device: if gears fail, it automatically locks within 10 cm. No special batteries, no heavy motors. Built to XF 494-2023 standard.

Do I need a special drill to use AWAH devices?

No. Any standard brushless hand drill within the torque range works. Z3-MINI: 90–180 Nm. Z3-PROF / Z3-FIRE: 120–180 Nm. Z2-A: 50–150 Nm. Never use impact drivers, hammer drills, or any tool with impact functions.

What safety certifications do AWAH products have?

All AWAH products are built to XF 494-2023, the PRC fire rescue industry standard, and are approved for personnel support under this standard. The Z3 series has obtained CE certification. Under EU regulations, AWAH devices do not carry PPE certification — check local regulations before use.

Can I get a sample before placing a bulk order?

Yes. We offer free samples to qualified buyers. Contact us with your use case and requirements, and we'll ship a sample unit for evaluation.

What maintenance do AWAH devices require?

Inspect before every use. Perform detailed inspection every 6 months. Annual evaluation including sheave wear test. The gearbox is factory-lubricated and maintenance-free within its 6-year service life. Never add liquid oil to Z3 gearboxes.
