Rope Retriever
AWAH H1

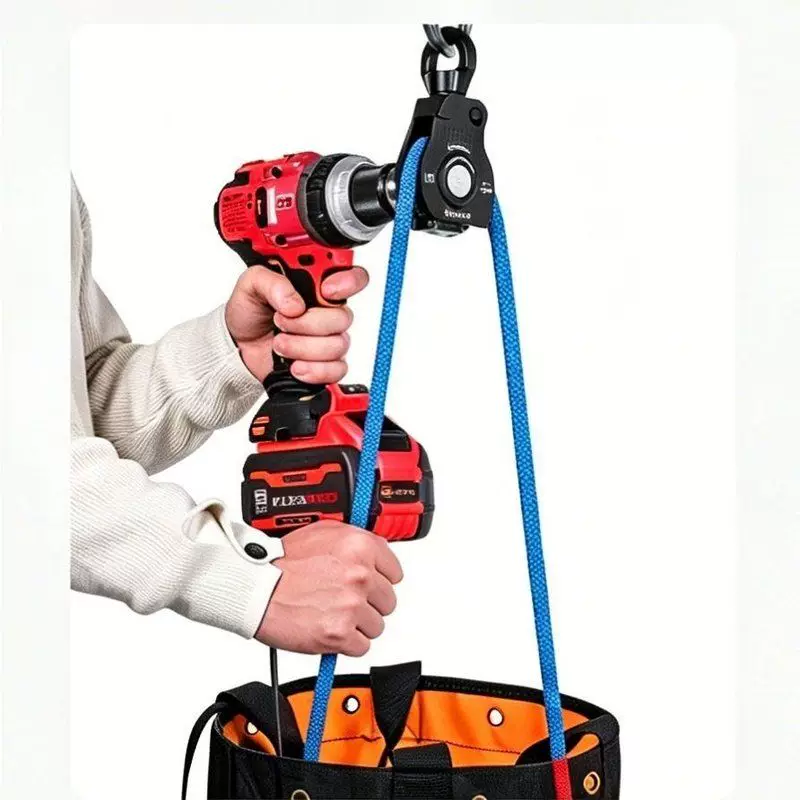

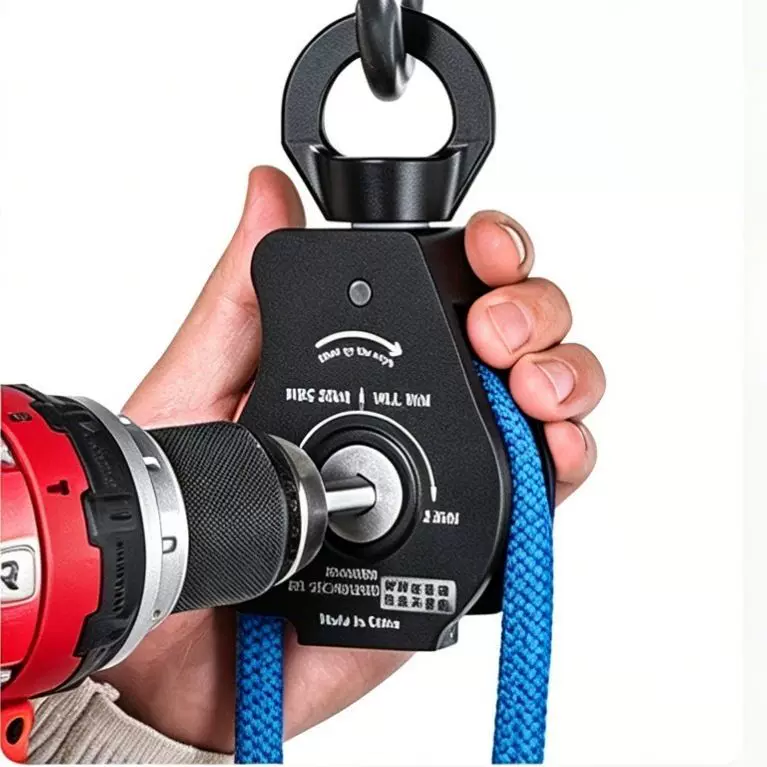

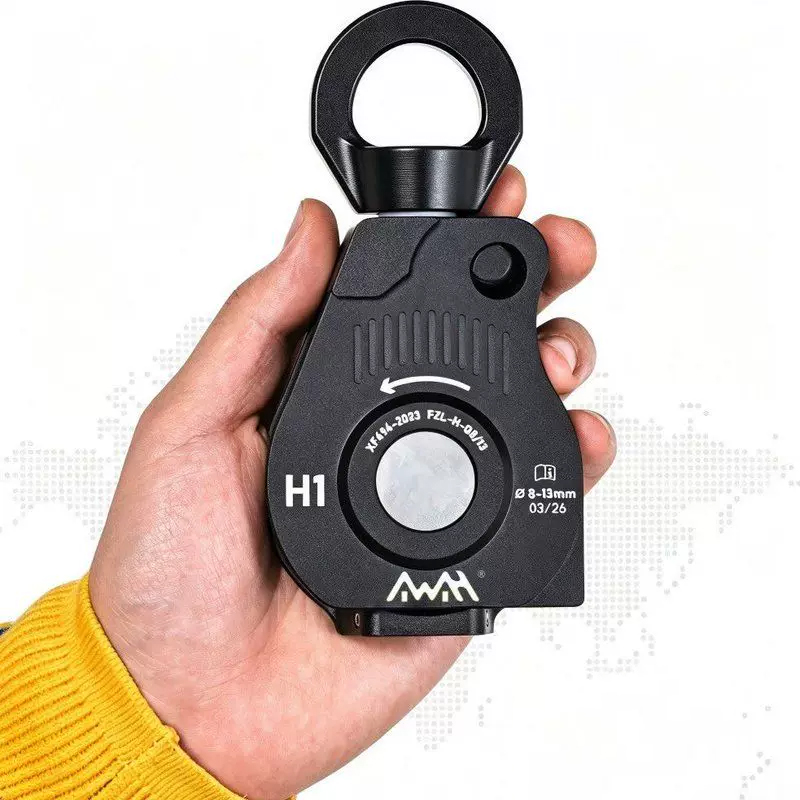

AWAH H1 rope-retrieving pulley quickly retrieves idle or slack rope using a standard cordless drill. Single toothed sheave with a single retriever — drives one rope strand at a time. Fitted with a hex adapter (8 mm or 5/16 in) that accepts a cordless drill. Also works as a rope pulley. 25 kN MBS with a working load limit of 250 kg per strand and 500 kg as a system. Built to XF 494-2023.
| Product Type | Single Sheave + Single Retriever |
|---|---|
| Weight | 445 g |
| MBS | 25 kN |
| Working Load Limit (WLL) | 250 kg per strand / 500 kg system |
| Rope | ø8–13 mm · retrieve up to 400 m |
| Drive | 8 mm or 5/16 in hex shank (cordless drill) |
| Model | FZL-H-Q8/13 |
| Standard | XF 494-2023 |
Applications
Where H1 Excels
Purpose-built for rope professionals who need to retrieve idle rope quickly between tasks.
Fast Rope Retrieval
Retrieves up to 400 m of rope at ø8–13 mm with a standard cordless drill. Recovers slack rope in seconds.
Mechanical Advantage
Doubles as a rope pulley. H1 runs a single strand; pair it with other pulleys to build progress-capture and MA systems.
Job-Site Rope Management
Reels in spare or trailing rope to keep work zones clean. Reduces snagging, tripping and rope wear.
