Z3-PROF

AWAH Z3-PROF

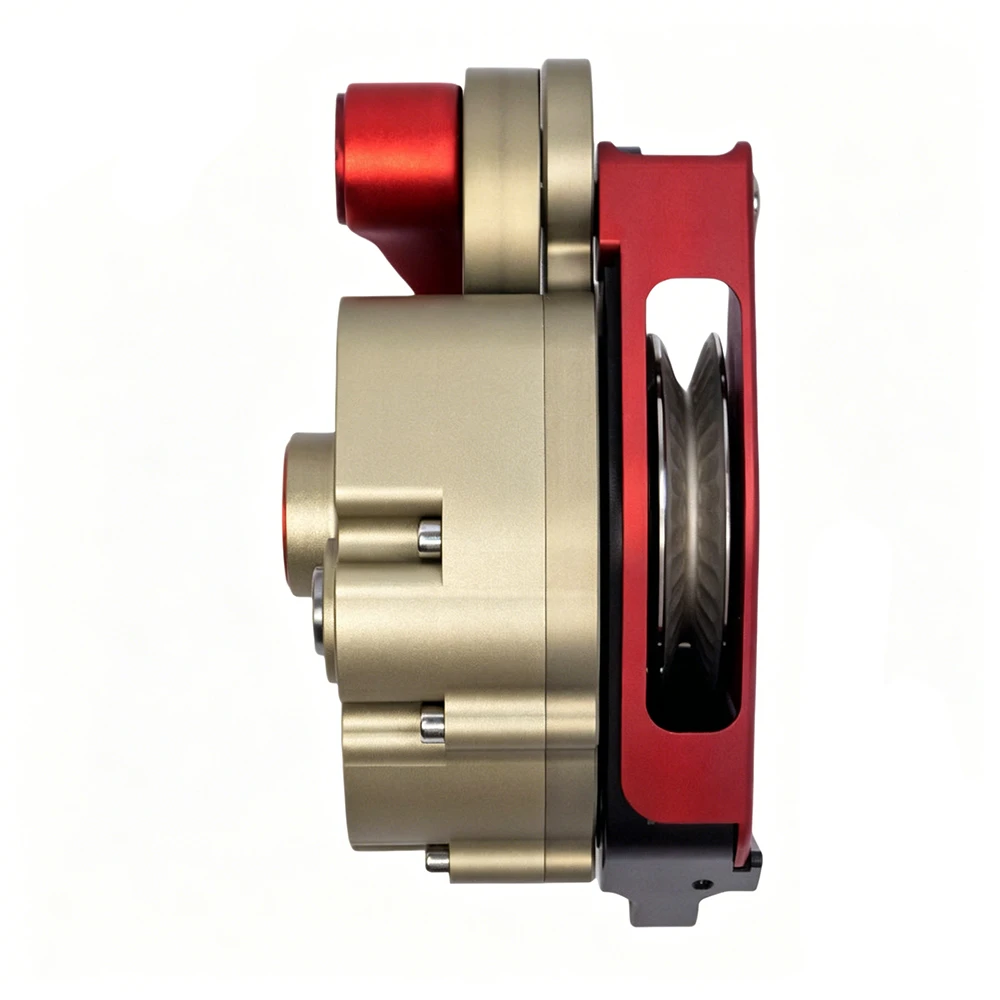

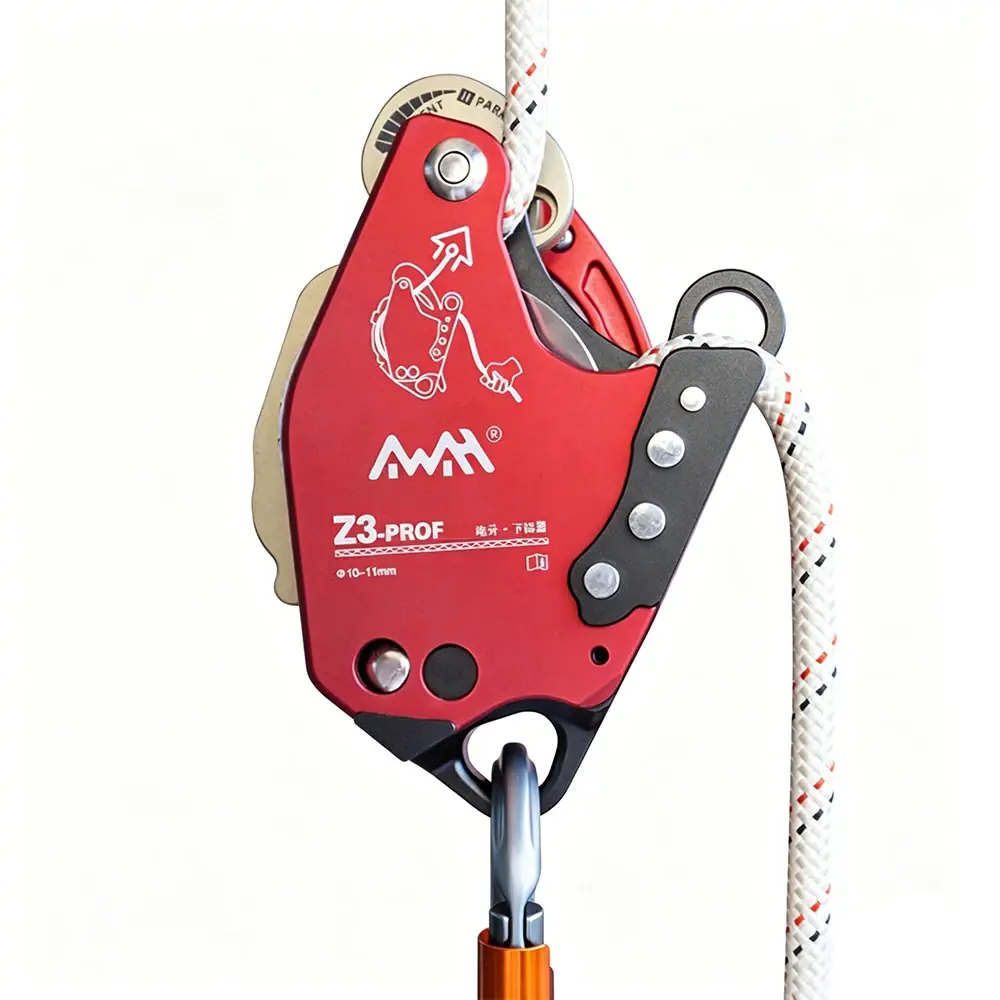

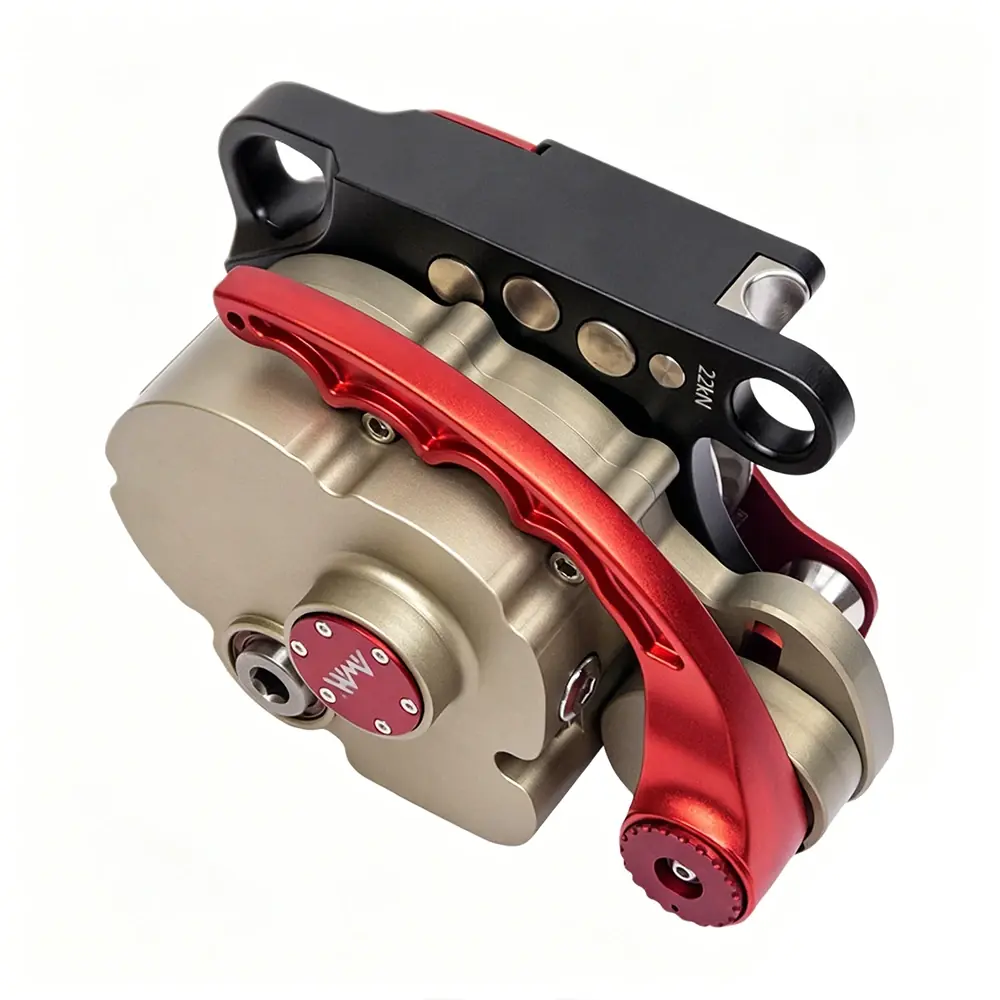

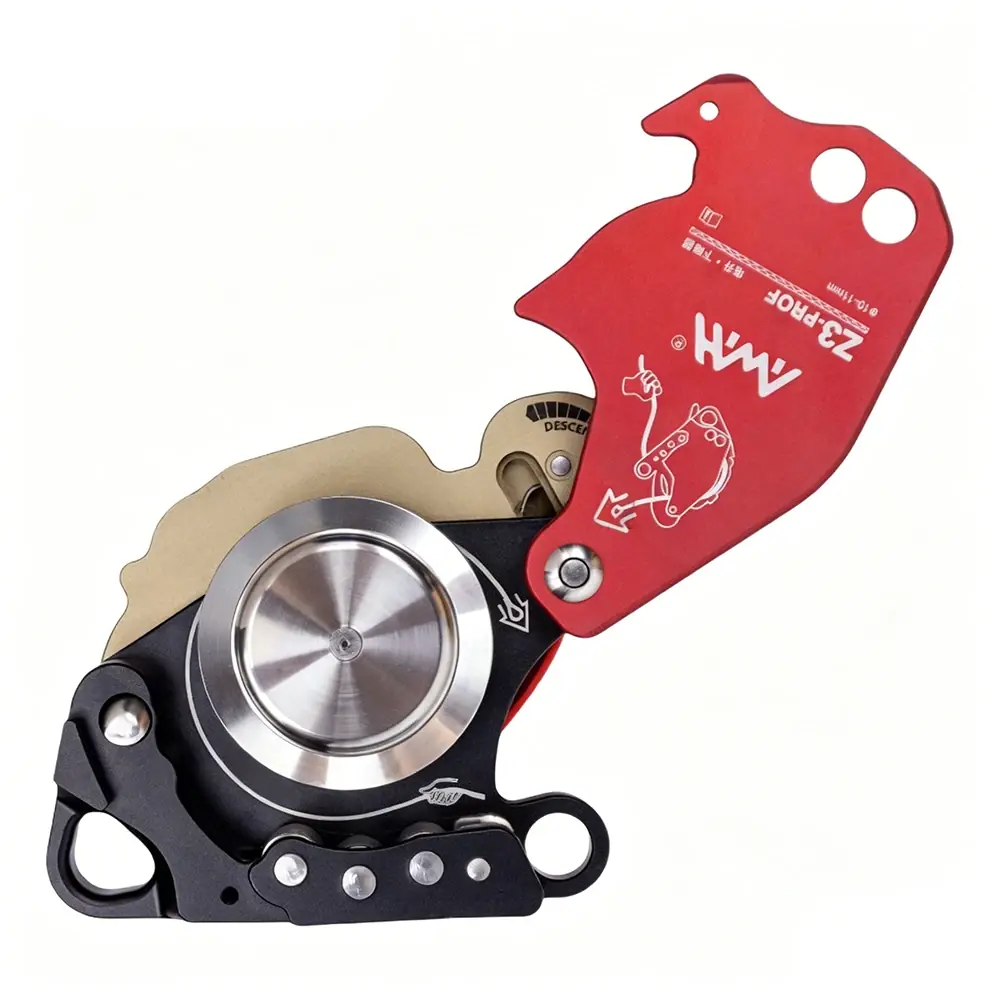

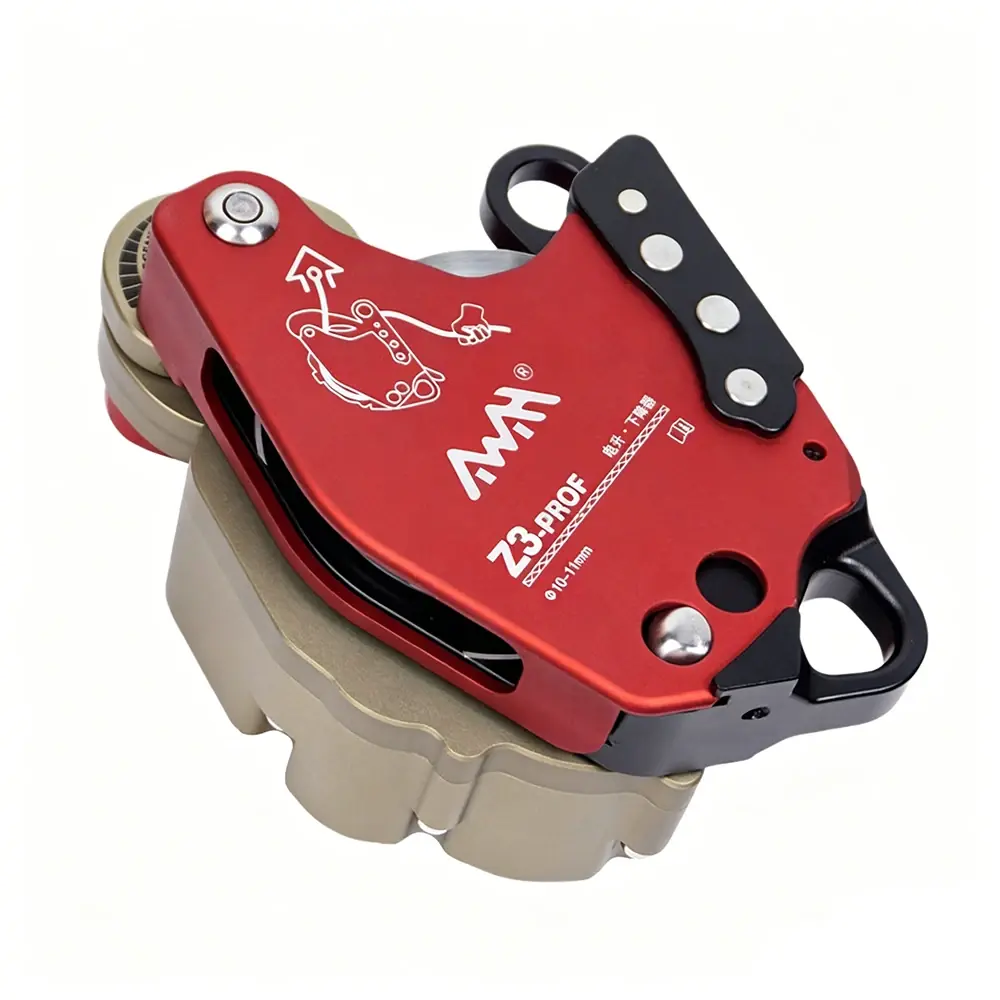

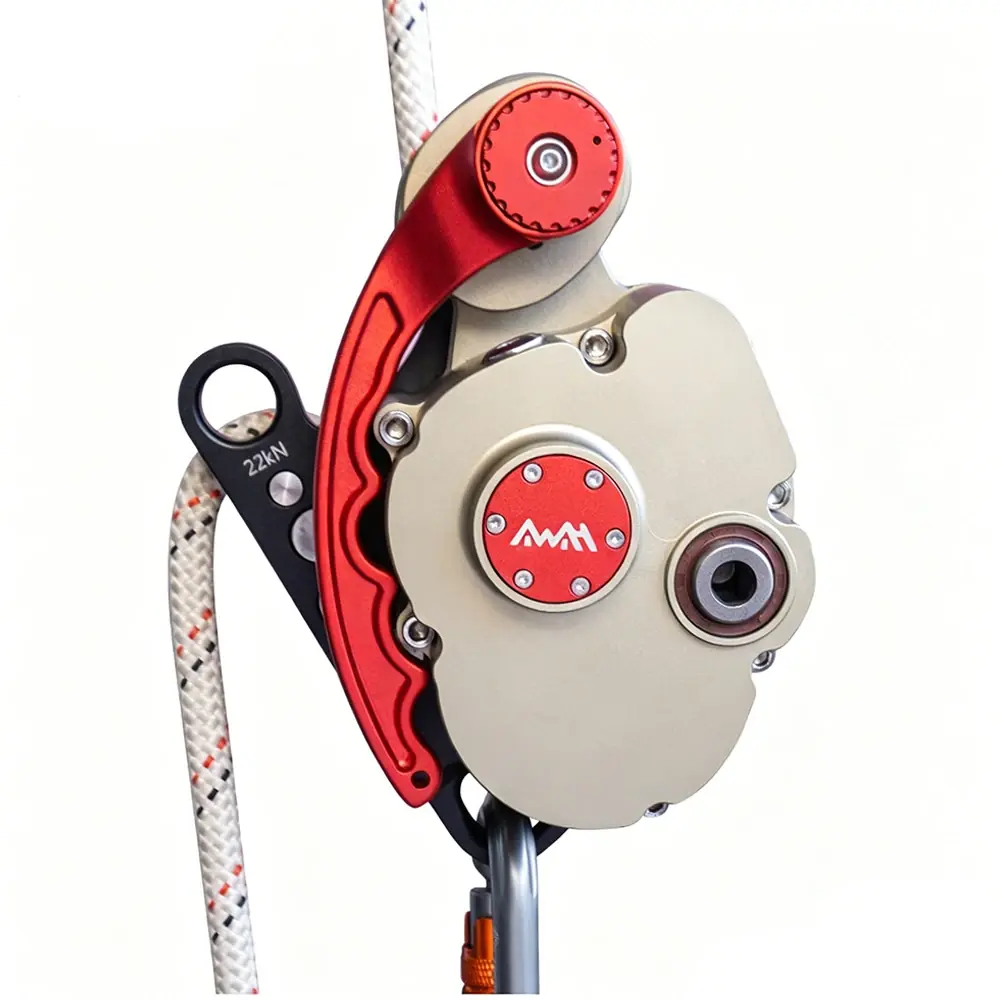

AWAH Z3-PROF photo 1AWAH Z3-PROF photo 2AWAH Z3-PROF photo 3AWAH Z3-PROF photo 4AWAH Z3-PROF photo 5AWAH Z3-PROF photo 6

Professional Grade

AWAH Z3-PROF

Professional-grade drill-powered ascender and manual descender. Equipped with 1 friction block and 3 rope guide wheels for precise, smooth descent control. Built-in gearbox crash self-locking device engages within 10 cm if gears fail. No swivel — optimized for straight-line industrial lifting. Electric lift: clockwise rotation. For rope access professionals and industrial riggers.

Load Range30–200 kg
Weight2.27 kg
RopeEN 1891 10–11 mm
Drill Torque120–180 Nm (clockwise)
SwivelNo
Sub-Attachment MBS22 kN
Friction BlockYes (1)
Guide Wheels3
Gearbox RatingIP66
Gearbox Self-LockingYes (crash self-locking device)
Operating Temp-15 °C to 45 °C
StandardXF 494-2023
Service Life6 years

Applications

Where Z3-PROF Excels

Built for professionals who demand precision descent control and industrial-grade durability.

Industrial Rope Access

Friction block and 3 guide bearings give precise descent control for NDT inspection, painting, and welding at height.

Wind Energy

Reliable lifting for turbine blade maintenance. IP66 gearbox handles offshore and high-altitude conditions.

Construction & Rigging

Precision lifting for steel erection, facade installation, and heavy material positioning on site.

FAQ

Z3-PROF Questions

Why doesn't the Z3-PROF have a swivel?
The Z3-PROF is optimized for straight-line industrial lifting and descent. Removing the swivel reduces weight and mechanical complexity, making it more reliable for professional rigging where tangle-free rotation isn't the primary requirement. For swivel-equipped models, see the Z3-FIRE or Z3-MINI.
How does the friction block improve descent control?
The single friction block, combined with 3 rope guide wheels, provides smooth, predictable friction during manual descent. Unlike the Z2 series' friction hook (which requires pre-wrapping), the Z3-PROF lets you control descent simply by gripping the rope and slowly pulling the release handle — no pre-wrapping needed.
Can I use liquid lubricant on the Z3-PROF?
No. The user manual explicitly prohibits adding liquid lubricating oil — it can cause the gearbox crash self-locking device to fail. The gearbox is factory-lubricated with high-temperature grease and is maintenance-free within its rated service life. If lubrication is needed, only use high-temperature grease via the proper service procedure.
