Z3-MINI
Light Duty

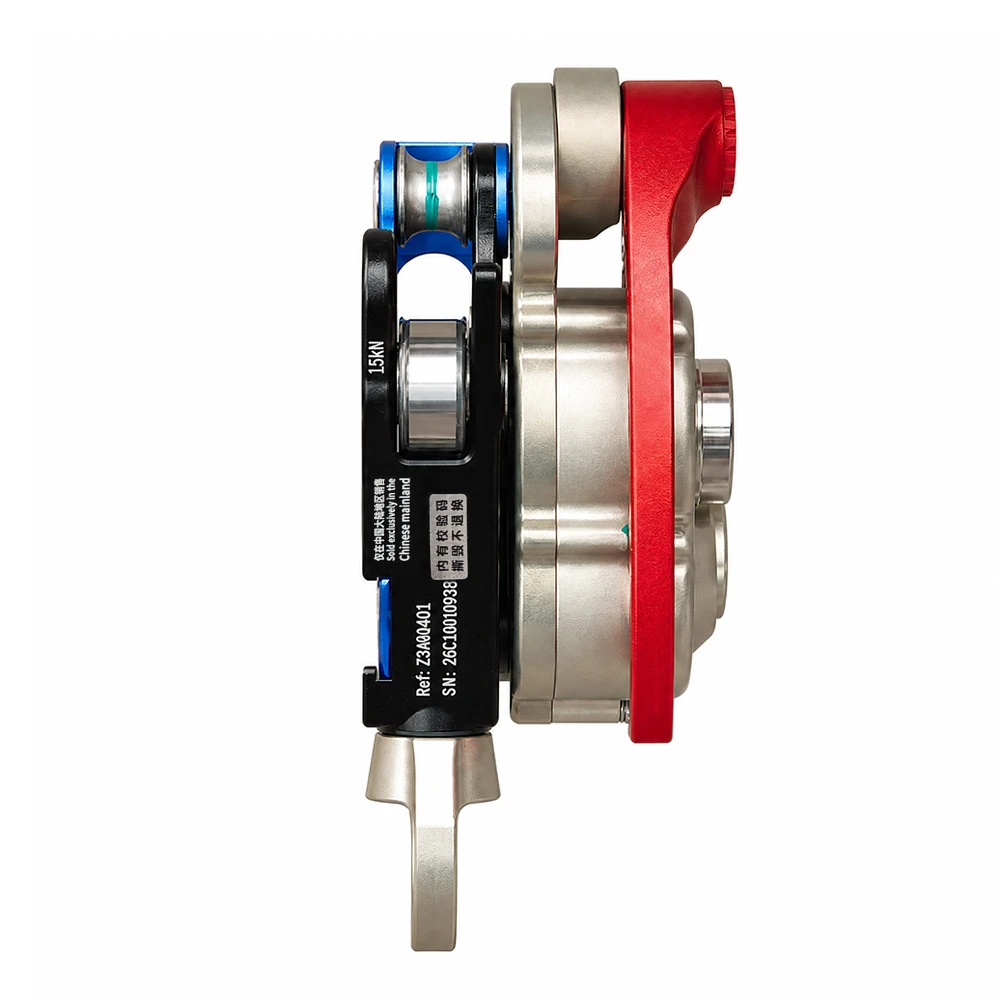

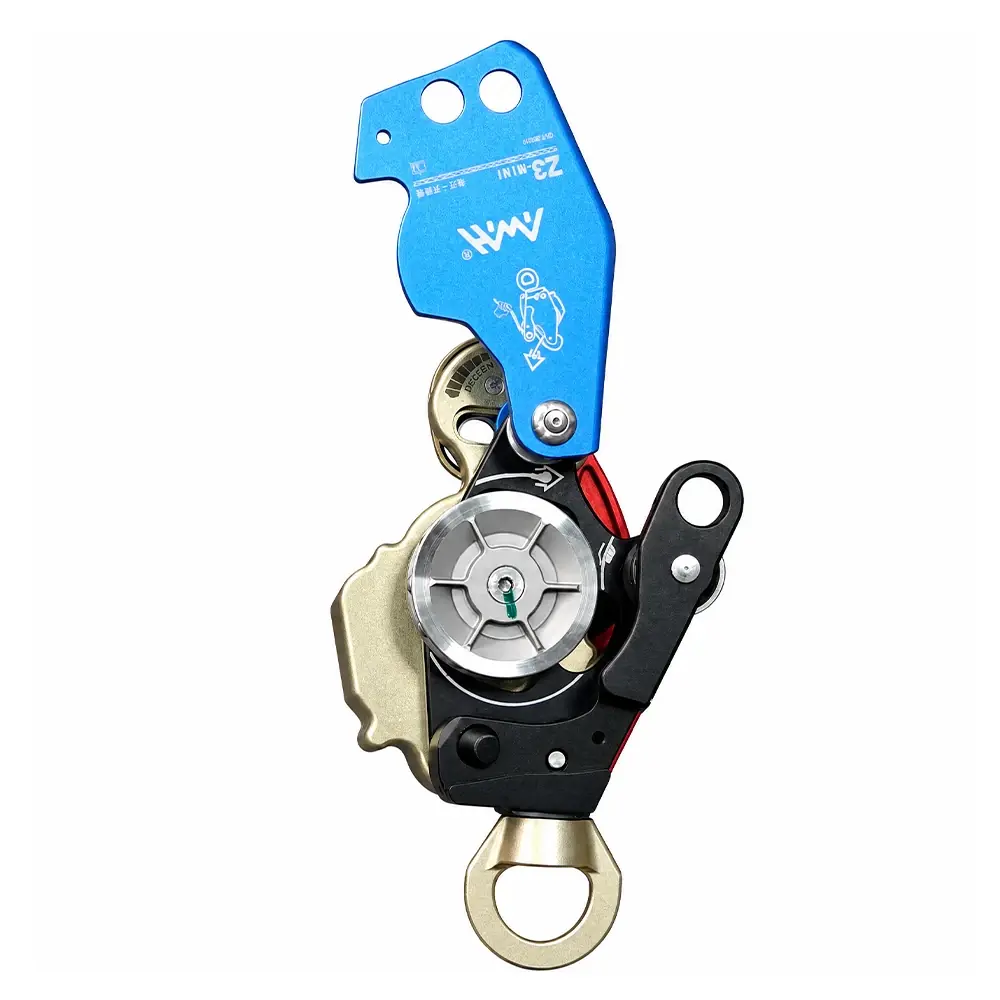

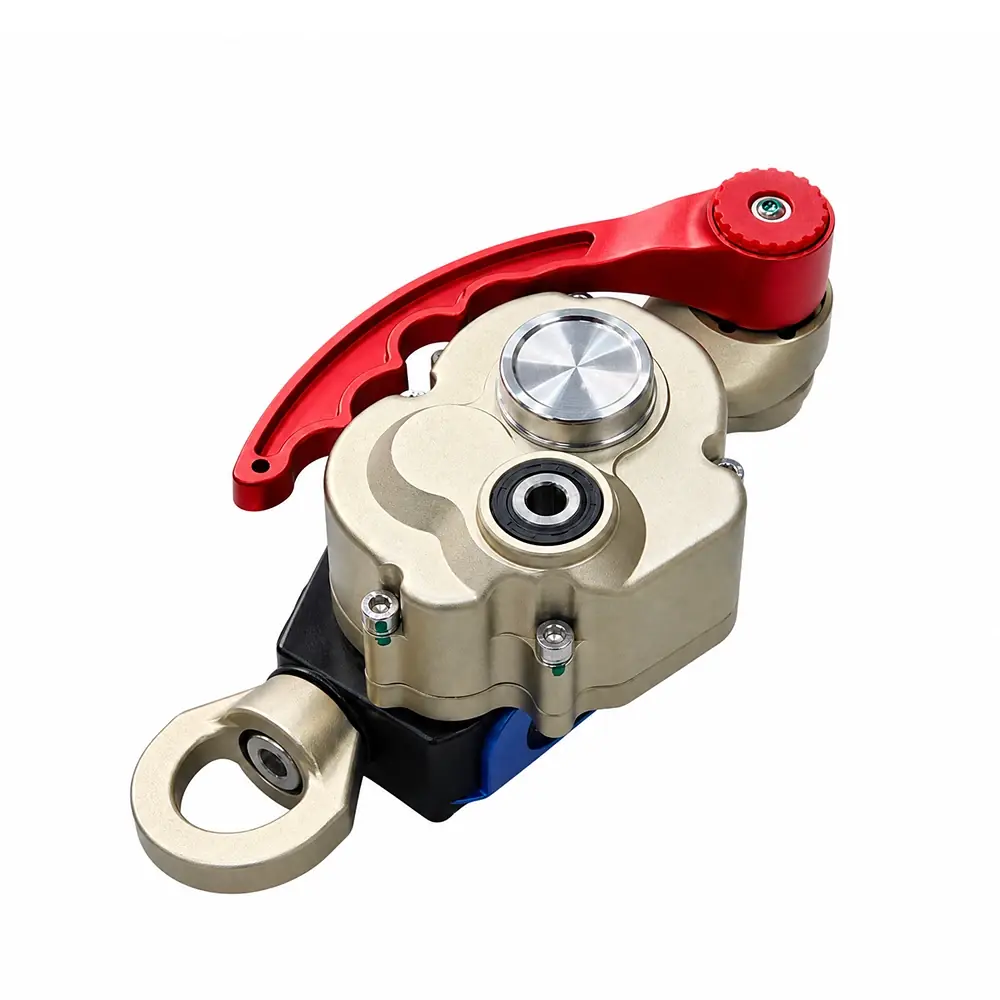

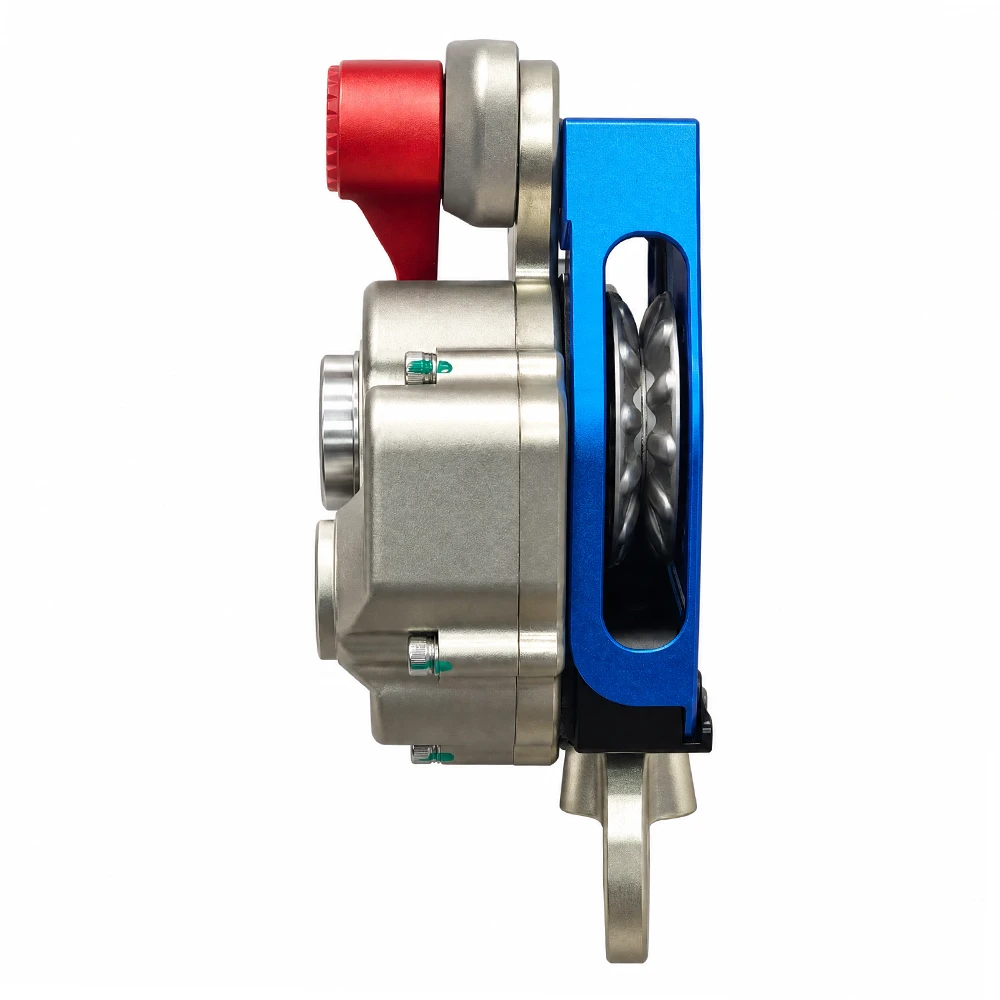

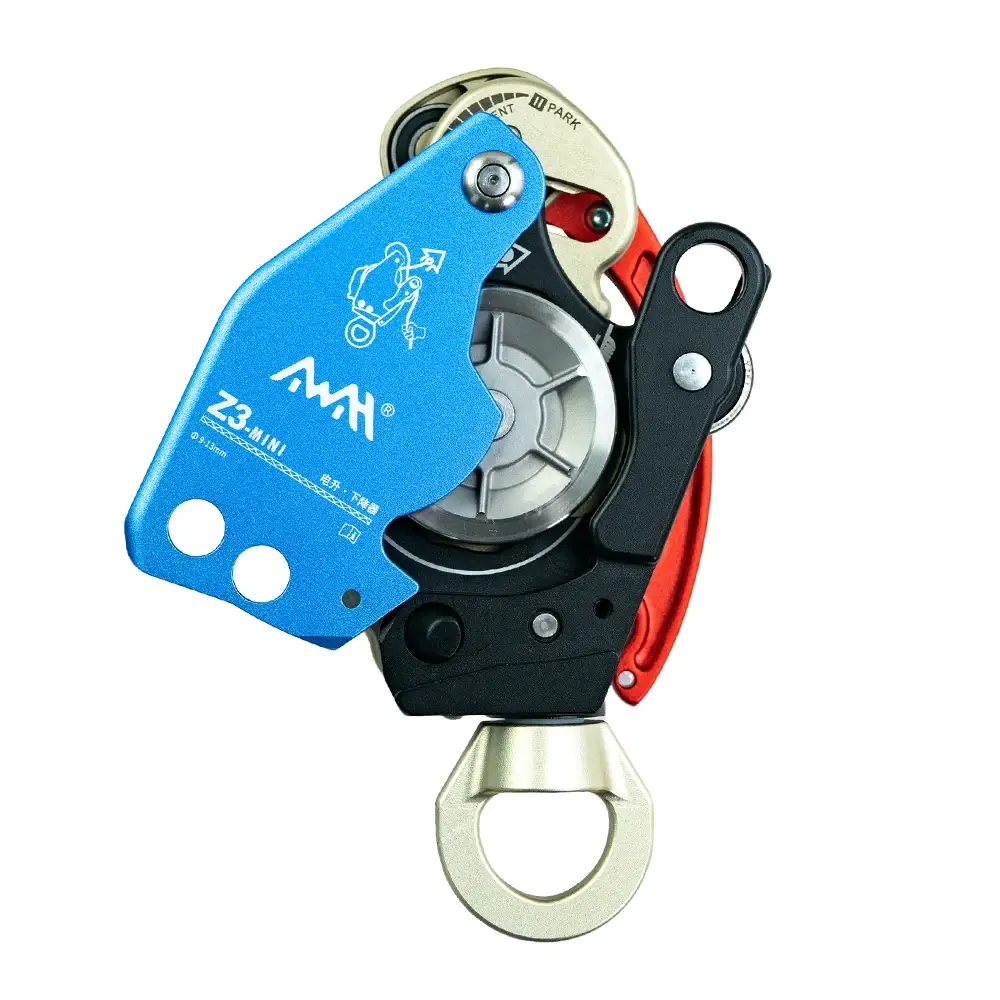

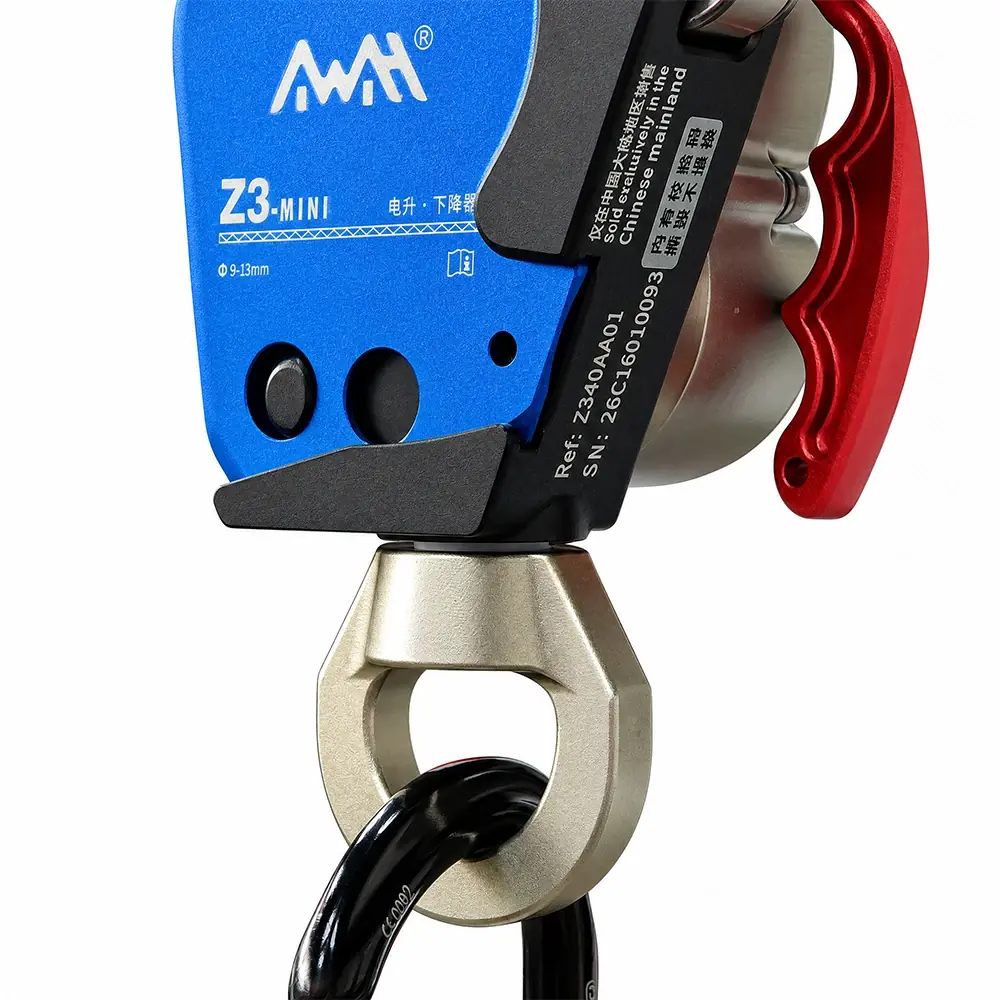

AWAH Z3-MINI
Compact drill-powered ascender and manual descender. 1 rope guide wheel, no friction block. Built-in gearbox crash self-locking device — if gears fail, the mechanism engages within 10 cm to lock the rope. Swivel-equipped. Electric lift: clockwise rotation. Open side panel allows rope loading without removing connector. Ideal for rope access and arborist work.
| Load Range | 5–100 kg |
|---|---|
| Weight | 1.83 kg |
| Rope | EN 1891 9–13 mm |
| Drill Torque | 90–180 Nm (clockwise) |
| Swivel | Yes (Rotary Joint) |
| Sub-Attachment MBS | 15 kN |
| Friction Block | No |
| Guide Wheels | 1 |
| Gearbox Rating | IP66 |
| Gearbox Self-Locking | Yes (crash self-locking device) |
| Operating Temp | -15 °C to 45 °C |
| Standard | XF 494-2023 |
| Service Life | 6 years |
Applications
Where Z3-MINI Excels
Designed for scenarios where compact size and light weight matter most.
Rope Access
Lightweight carry for building maintenance, window cleaning, and inspection work at height.
Arboriculture
Compact enough for tree climbing kits. Compatible with standard brushless drills arborists already carry.
Workshop Lifting
Light material handling, equipment installation, and maintenance tasks up to 100 kg.
FAQ
Z3-MINI Questions
Does the Z3-MINI have a friction block?
No. The Z3-MINI has 1 rope guide wheel and no friction block. For descent, grip the rope control end firmly and slowly pull the release handle — friction is regulated directly by hand. For loads over 100 kg, the manual recommends adding a connector to double the rope back for extra friction.
How does the crash self-locking device work?
The built-in gearbox crash self-locking device is purely mechanical — no batteries or electronics. If the gearbox fails, the rope drives the sheave in reverse for approximately 10 cm before the device automatically locks the sheave and wedges the rope to stop descent. After activation, lower the load safely and retire the device — it must be returned to the factory for inspection or replacement.
Can I use rope thinner than 9 mm?
No. Rope thinner than 9 mm risks being pulled into the sheave mechanism (entanglement hazard). The Z3-MINI accepts EN 1891 kernmantel ropes from 9–13 mm. Never use UHMWPE (Dyneema/Spectra) or polypropylene ropes — they are explicitly prohibited in the user manual.
